short info

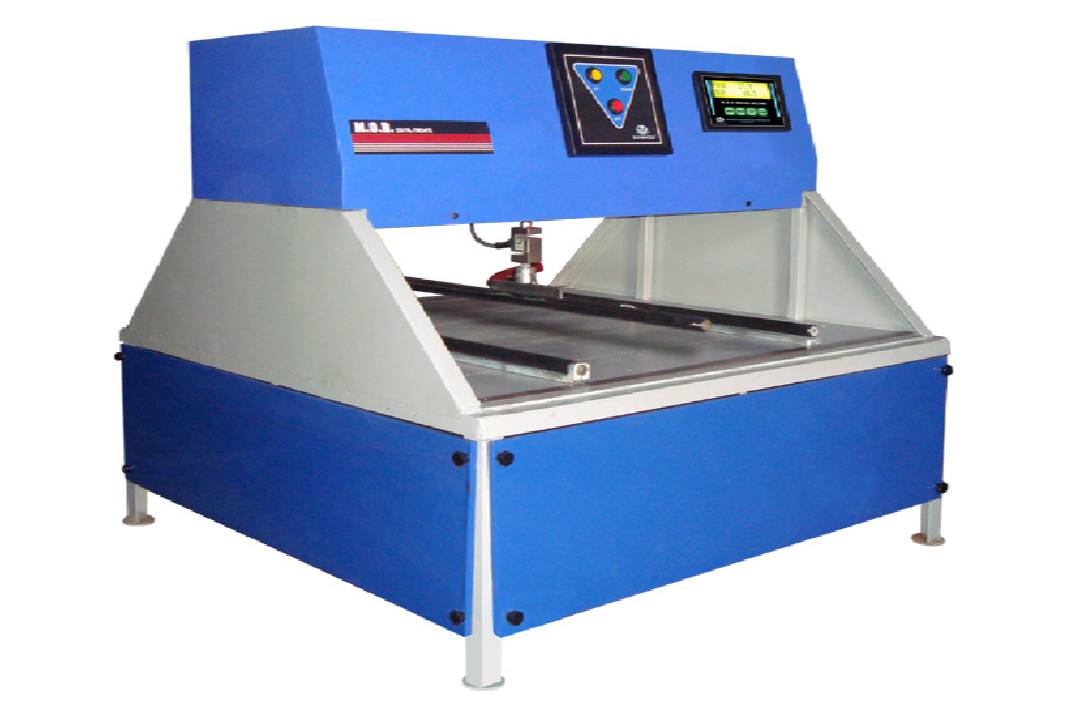

Automatic MOR Testing Machine Pace Rate Control With TOUCH SCREEN control panelto control the Rate of Loading at 1 Newton per mm square per second. Capacity 500 Kgf. Least count 0.1 Kgf. with adjustable test span to accommodate different size tile specimen up to 60 x 60 cm. Direct reading of MOR value in KN or Kgf. PC connectivity with software.

Standard

IS : 13630 (Part - 6), ISO 10545 (Part-4)

Model

VSLIC-G068

Origin

Indian

Make/ OEM

VERTEX



  • OVERVIEW

  • SPECIFICATIONS

  • FEATURES

  • VIDEO
  •  New
    WORKING PRINCIPAL

OVERVIEW



Product Overview:

  • Electro-Mechanical Design, quite and vibration free operation, Rate of loading controlled through AC drive.
  • Capacity    : 500 kgf
  • Least Count : 0.1 Kgf
  • Accuracy    : 0.2% of Full Scale

Salient Features:

  • Standard Digital Model with Load Cell
  • Suitable for fired sample test on the same machine
  • Suitable for MOR Test of Ceramic Tiles / Bars as per IS0 : 10545 (Part-4) and IS : 13630
  • Direct reading possible for different shapes of tiles (Square, Rectangular and Round)
  • Direct Display of Load / Collapsing Force
  • Selectable Test Units – Kg, KN
  • Auto-stop upon completion of Test.
  • Provision for emergency switch in case, if user wants to stop the load applicator at certain height
  • With LCD Display digital control panel.
  • INTERGERATED AC INDUCTION MOTOR WITH DRIVE to control rate of Loading.
  • With special guard to protect the operator against Ceramic splinters
  • With 2 Rubber Lined rollers of 30 mm diameter
  • With adjustable Test Span
  • With Auto-Calibration facility using standard Cast Iron Weights and standard code (Weights will not be supplied with the machine)
  • Complete Unit is powder coated in attractive shades
  • Operation on 230 Volt, 50 Hz, Single Phase, AC Supply

Support Rod and Central Load Applicator

  • 02 Nos. cylindrical support rods and 01 central load applicator rod covered with rubber
  • One cylindrical support rod is slightly pivotable
  • Other cylindrical support rod is slightly rotatable about its own axis.
  • Diameter of all Metal rods : 20 ± 1 mm
  • Thickness of rubber : 5 ± 1 mm
  • Hardness of rubber : 50 ± 1 mm

Supplied with MOR Software (Optional accessories):

  • PC Software to log & Modify the generated date
  • Two way communication with the machine
  • Direct reading of MOR value and Breaking strength in excel format
  • Reading can be saved and printed from the computer
  • Connection through RS-232 port
  • User can start/stop the machine form the computer
  • User can enter Batch no, Date, Time, Dimensions of the test samples for report purpose
  • User can enter company LOGO for report generation
  • Can export the generated report in PDF, EXCEL, WORD Format.
