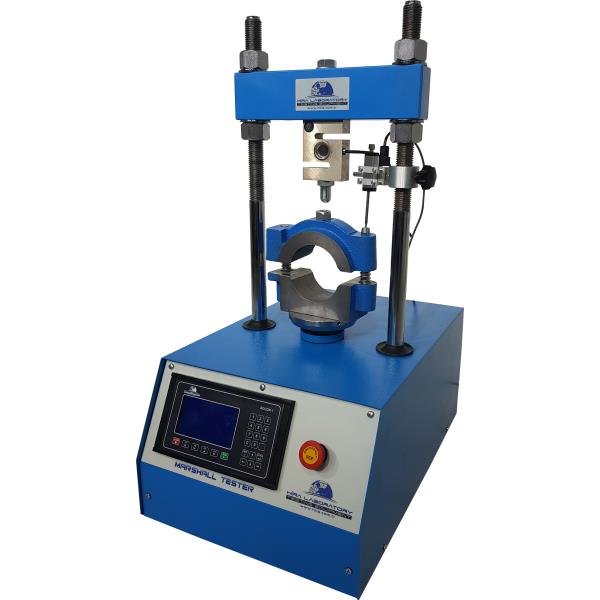

Automatic Marshall Stability Machine VSLIC - 661

short info

The Vertex Automatic Marshall Stability Machine is used to determine the maximum load and flow values of bituminous mixtures.

Standard

ASTM D1559, BS : 598-197

Model

VSLIC - 661

Origin

Indian

Make/ OEM

VERTEX

get a quote

  • Description

  • SPECIFICATIONS

  • FEATURES

  • VIDEO
  •  New
    WORKING PRINCIPAL

OVERVIEW

  • The Marshall Stability Machine comprises of a robust, best premium quality and compact two-column frame with an adjustable upper crossbeam.
  • The Apparatus is a bench mounted compression frame with motor and worm gear housed within the base unit.
  • The speed of the lower platen can be adjusted between 6 mm/min to 60 mm/min using the data acquisition and control unit.
  • For safety, the up and down travel of the lower platen has limited the use of limit switches.
  • Rapid adjustment of the platen is controlled using the up and down buttons on the front panel of the machine.
  • The Best Automatic Marshall Stability Machine can be hand operated by a lateral hand wheel for calibration purposes.
  • The measuring system consists of a 50kN capacity strain gauge load cell fitted to the upper cross beam to read stability values and the 25 x 0.001 mm linear potentiometric displacement transducer fitted to the breaking head.
  • The Automatic Marshall Stability Machine is suitable for testing 6” dia. 4” dia.


Related Searches

SPECIFICATIONS

Technical Specification

  • Automatic Marshall Stability Machine, 50 KN

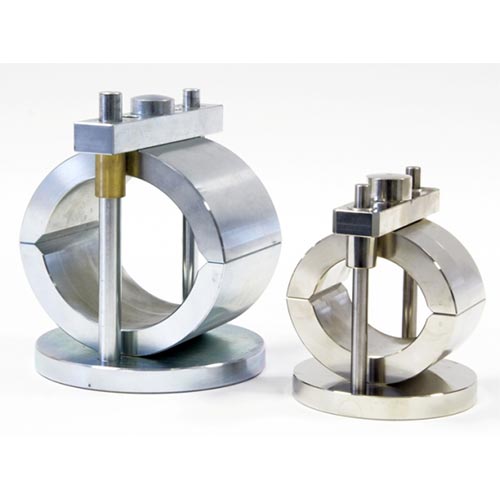

  • Breaking Head (Stability Mould) 4Inch or 6Inch
  • Linear Potentiometric, Displacement Transducer, 25×0.001 mm with Bracket for Breaking Head & Liner Potentiometric, Displacement Transducer.
  • Automatic Marshall Stability Test Machine with U-Touch PRO Control Unit, 50 kN
  • Breaking Head (Stability Mould) for Ø4” Specimen
  • Breaking Head (Stability Mould) for Ø6” Specimen
  • Indirect Tensile Strenght Test Jig
  • with Steel Loading Strips for Ø100mm Compacted Bituminous Specimens
  • Pair of Loading Strips for Ø150 mm Bituminous Specimens.
  • Pair of Loading Strips for Ø160 mm Bituminous Specimens.
  • Indirect Tensile Strength Test Jig with Steel Loading Strips for Ø4” (101,6mm) Compacted Bituminous Specimens
  • Pair of Loading Strips for Ø6” (152,4mm) Bituminous Specimens.
  • Marshall Penetration Piston for Stability Test
  • Electricity Consumption Single Phase 220-240 V 50-60 HZ

FEATURES

Automatic Marshall Stability Machine Main Features

  • Marshall Stability Automatically calculates flow and stability values
  • This Apparatus Can make a test with displacement and limited load control Provide Real-time display of test graph.
  • Automatic Marshall Stability Machine storage capacity up to 50000 test results.
  • This Apparatus 4 analog channels, 2 channels are active for Marshall Stability Test Apparatus Programmable digital gain adjustment for load-cell, pressure transducers, strain-gauge based sensors, potentiometric sensors, voltage, and current transmitters
  • 1/256000 points resolution per channel
  • 10 data per second sample rate for each channel
  • Ethernet connecting for computer interface
  • 800×480 resolution 65535 color TFT-LCD industrial touchscreen
  • 4 main function keys
  • Automatic Marshall Stability Machine Provide 3 different unit system selection; kN, Ton, and lb
  • Test result visualization and memory management interface
  • Remote connection through ethernet
  • USB flash disc for importing test results and for firmware
  • USB printer support for inkjet and laser printers (ask for compatible models)
  • (Optional ) Camera support for real-time video recording during the test (ask for compatible models)
