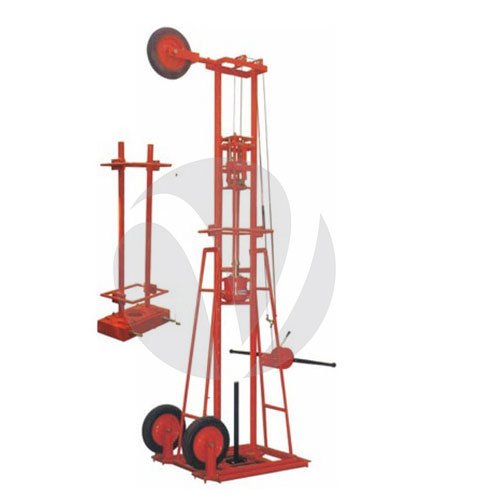

Automatic free fall hammer VSLIC-S100

short info

Vertex Automatic free fall hammer is designed to deliver equal impact energy in each blow while performing Standard Penetration Test.

Standard

IS : 2720 (Part V)

Model

VSLIC-S100

Origin

Indian

Make/ OEM

VERTEX

get a quote

  • Description

  • SPECIFICATIONS

  • FEATURES

  • VIDEO
  •  New
    WORKING PRINCIPAL

OVERVIEW

This Free-Fall Hammer is designed to deliver equal impact energy in each blow while performing the Standard Penetration Test. This is achieved by providing a trigger mechanism to standardize the height of fall and a suitable guide system for maintaining vertically of the guide rod and drill rod assembly. The guide system also maintains their alignment throughout the duration of the test. The system is compact and easy to use, provides maximum safety for the operator.


Related Searches

SPECIFICATIONS

It is designed to deliver equal impact energy in each blow while performing the Standard Penetration Test. This is achieved by providing a trigger mechanism to standardize the height of fall and a suitable guide system for maintaining the verticality of the guide rod and drill rod assembly. The guide system also maintains their alignment throughout the duration of the test. The system is compact and easy to use, provides maximum safety for the operator.

FEATURES

  • It improves the efficiency and accuracy of penetration test SPT and DCPT.
  • It delivers equal impact energy in each blow.
  • It is easy to use.
  • Provide maximum safety to the operator.

PRODUCT VIDEO

WORKING PRINCIPALNew
