Leica NA 700 Series Auto Level

quick info

[xyz-ips snippet="IS-Standard"]

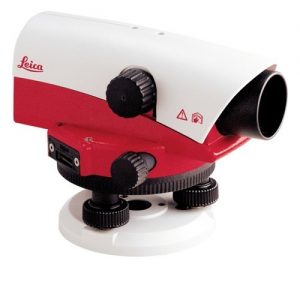

Leica NA 700 Series Automatic Levels.

Build for builders, engineers, and surveyors levels.

Nothing stops a Leica NA700 auto level. A short drop onto the ground, a fall into the water, vibration from heavy machinery – with a Leica NA700 auto-level you just carry on working. No time-consuming checking or readjustment required. And, the ‘best in class’ optics enable you to always work as precisely as possible, even in twilight. What does this add up to? Reduced work downtime, thus translates into higher productivity, resulting in reliability and accuracy at an extremely reasonable price.

[wpdm_package id='6750']

Leica NA-700 Series Features:

Superior Performance, Superior Value Extreme robustness, the highest measurement precision, and an extremely competitive price. All this in one package. No one else comes close.

So Easy to Use

The circular bubble and horizontal circle can be read directly next to the telescope. Approximate targeting is made easy using the external sight. The image is presented upright and precise targeting is quick, courtesy of the double-sided endless drives. The NA728 and NA730 have a rough/fine focus drive making your work even easier.

Free Choice

Configure the level to suit your work and preferences. The horizontal circle can be read in either degrees or gons, the footscrews have adjustable resistance. Also, the NA700 automatic level series may be mounted on flat or dome head tripod.

Ergonomic Optics

Probably the finest optics in the world. Banish tired eyes forever. Ensures you’re really aiming accurately at the target, even in extreme light conditions. A minimum target distance of 50cm enables you to work in the tightest conditions.

Just in case – Shock Resistant

Even after a fall, the LEICA NA700 series levels can be used again straight away. No need to check or readjust the instrument in the workshop or send it for service. In our quality assurance tests the LEICA NA700 auto level is subjected to impacts with an acceleration of up to 700G. It’s also passed the tough ISO9022-33-05 standard. These quality tests ensure that the LEICA NA700 can withstand the roughest treatment on site.

Just in case – Waterproof

Water, dust and dirt have no effect on the LEICA NA700 series automatic level. High quality workmanship matched with an intelligent design, watertight seals, a gas-filled telescope and the most modern technology means that even after a total soaking you just carry on working. LEICA NA700 series levels are tested for water resistance up to IP57 (total immersion) of the IEC60529 standard.

Just in case – “Best in class” optics

Whether early in the morning, late in the afternoon or simply in the shade of a large building, you can work with the NA700 level series where the others simply have to give up. Better contrast reduces the strain on your eyes and makes it easier to read the measurement. The building site is no place for compromise. That’s why every LEICA NA700 auto-level uses our renowned optics. What does this mean? Longer periods of use with reduced chances of error. And at no extra cost.

There are four models in the NA700 range:

    • Leica NA720 : The automatic level for all applications on the construction site. 20x telescopic magnification.
    • Leica NA724 : 24x telescopic magnification for improved accuracy. Reliability and Robustness for the demanding construction user.
    • Leica NA728 : The all-rounder. 28x telescopic magnification, precision compensator. For building or engineering surveys.
    • Leica NA730 : The most precise. 30x telescopic magnification. Meets the highest standards in construction, engineering, and topographic surveys.

Leica NA700 Auto Level Technical Specs:

Technical Data NA720 NA724 NA728 NA730
Accuracy
Per km double run 2.5 mm 2 mm 1.5 mm 1.2 mm
Single measurement – Target distance 30m 1.5 mm 1.2 mm 1 mm 0.8 mm
Compensator
Setting accuracy < 0.5″ < 0,5″ < 0.3″ < 0.3″
Working range ± 15′ ± 15′ ± 15′ ± 15′
Environmental
Impact standard ISO 9022-33-5 ISO 9022-33-5 ISO 9022-33-5 ISO 9022-33-5
Resistance to water and dust ingress IP57 IP57 IP57 IP57
Temperature Range
– Operation -20° to +50°C -20° to +50°C -20° to +50°C -20° to +50°C
– Storage -40° to +70°C -40° to +70°C -40° to +70°C -40° to +70°C
Dimensions & Weight
Dimensions 19x12x12 cm 19x12x12 cm 21x12x12 cm 21x12x12 cm
Weight 1,6 kg 1,6 kg 1,7 kg 1,7 kg
