Anti Vibration Table VSLIC-C243A

short info

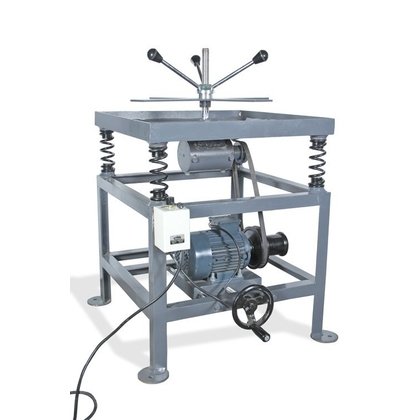

Vibrating Table(open body).It is designed to carry a load of 140 kg. The apparatus consists of a motor fitted with a variable pitch pulley housed in a cabinet.

Standard

EN 12350-6, 7, 12390-2, 13286-50

Model

VSLIC-C243A

Origin

Indian

Make/ OEM

VERTEX

get a quote

  • Description

  • SPECIFICATIONS

  • FEATURES

  • VIDEO
  •  New
    WORKING PRINCIPAL

OVERVIEW

The Vibrating Table Proper compaction of cement concrete while casting specimens for compression testing is essential to achieve higher compressive strength. Vertex Vibrating Table is ideally suited for this purpose.

The tabletop is suitable to hold cube moulds and has stops along its edges to prevent moulds from sliding off the table during operation. The specially designed vi bro motor for operating the vibrator.

Tabletop size : 750 x 750 mm 1000 x 1000 mm also available at an extra cost. Both models operates on 440 volts, A.C. Three Phase

Product Description

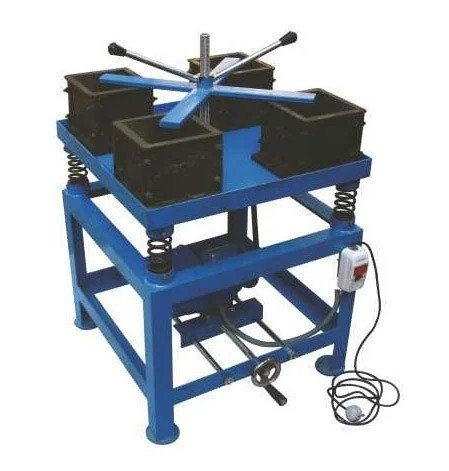

Cube Mould Vibrating Table

  • The Vibrating table is entirely constructed of thick steel.
  • The table top is made of thick mild steel plate and has stops along its edges to prevent moulds from walking off the table during operation.
  • A cross arm adjustable on a vertical rod at the centre of the table is provided to hold the moulds while operating the table.
  • The variable pitch pulley arrangement permits the variation of frequency between maximum of 3600 vibrations down to 2600 vibrations per minute.
  • A speed regulation handle is provided for increasing or decreasing the frequency.
  • The vibrator is mounted on cushioned steel vibrating deck. A switch is provided for starting the motor. Operation on 440 V, three phase, A.C. supply.

Table Sizes

  • 50 X 50 cm
  • 60 x 60 cm
  • 75 x 75 cm
  • 100 x 100 cm


Related Searches

SPECIFICATIONS

Models available:

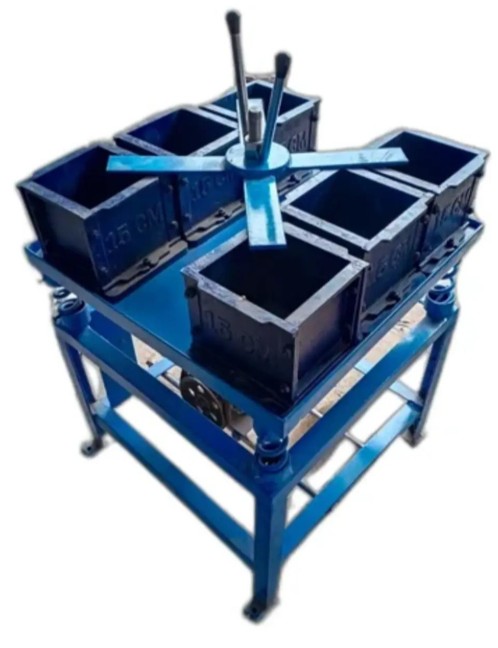

  • Vibrating Table, Tabletop 75cm x 75cm for 6 moulds of 150mm cube
  • Vibrating Table, Tabletop 50 x 50cm for 4 moulds of 150mm cube
  • Vibrating Table, Tabletop 2m x 1m for 32 moulds of 150mm cube
  • Vibrating Table, Tabletop 1m x 1m for 16 moulds of 150mm cube

FEATURES

PRODUCT VIDEO

WORKING PRINCIPALNew
