As Entrainment of Air in limited percentage improves durability of concrete and very low percentages deteriorate it, measurement of air entrapped in freshly mixed concrete becomes important. The use of chemical additives to increase workability of concrete requires an air content check to be made. Air entertainment meters are used to determine air entertained in freshly mixed concrete by pressure method.
Salient Features

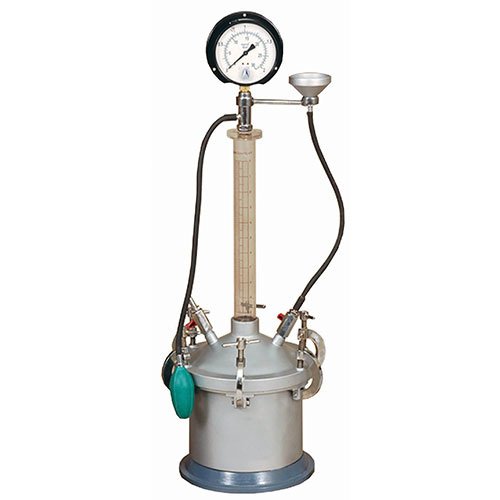

- The apparatus consists of a pressure tight flanged cylindrical measuring bowl of 0.005 cubic meter capacity for maximum size of aggregate 38mm. The bowl is fitted with a removable flanged conical cover assembly with the help of a seal. The conical cover has an air valve and a pet cock for bleeding off the water. A transparent cylindrical stand pipe which is graduated in air content is fixed to the conical cover assembly. Pressure is applied to the specimen with the help of a pressure bulb and the pressure is recorded on the pressure gauge which is mounted on the stand pipe. The whole assembly is mounted on a flat base. The instrument is supplied complete with one each following accessories. Calibration cylinder with spring clamp, Trowel, Tamping rod, Straight edge, Rubber mallet and measure.
- Also available with a pressure tight flanged cylindrical measuring bowl of 0.007 cubic meter capacity for maximum size of aggregate 38mm.
- Also available with a pressure tight flanged cylindrical measuring bowl of 0.01 cubic meter capacity for maximum size of aggregate 75mm.
- Also available with a pressure tight flanged cylindrical measuring bowl of 0.1 cubic meter capacity for maximum size of aggregate 150mm. Spaces: Rubber pressure bulb with tube & gasket for vessel.
Models available:
- Air Entrainment Meter, Capacity 0.005 m3 (5 litres), suitable for aggregate size upto 38 mm.
- Air Entrainment Meter, Capacity 0.01 m3 (10 litres), suitable for aggregate size upto 75 mm.
- Air Entrainment Meter, Capacity 0.1 m (100 litres), suitable for aggregate size upto 150mm.
